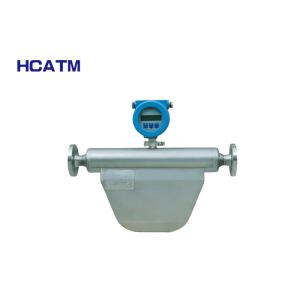

GMF900-G High precision stable liquid gas Coriolis mass flow meter
Technical Parameters
| GMF900 Series Coriolis Flowmeter | |
| Model | GMF900-G |
| Medium | Liquid, gas |
| Precision | ±0.5% (gas) |
| Structure Type | Split type, integrated |
| Output | 4～20mA current; 0～10KHz frequency; HART; RS-485 |
| Pipe Diameter | DN15-DN85mm |
| Density Accuracy | ±1kg/m3 |
| Flow Range | 0-210000kg/h |
| Zero Stability | 0.03～180kg/h |
| Temperature Range | -40 ° C ~ 350 ° C |
| Process Pressure | ≤11MPa |
| Power Supply | 24VDC; 220VAC |
| Installation Form | Flange |
| Measuring Tube Material | 316L |
| Protection Level | IP67 |
| Human Machine Interface | 3 photoelectric button, two-line LCD display, field configurable, view, zero calibration |
| Explosion-proof Mark | Exde[ib]IIC T6 Gb |
Product Details
