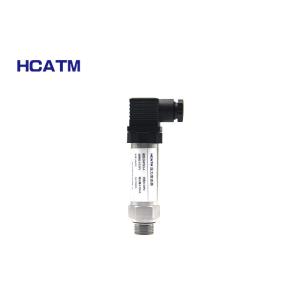

GMP501-A Liquid gas water 4-20mA HART RS485 diffused silicon pressure transmitter
Product Overview
GMP501-A series universal pressure transmitter is a zero and full-range output adjustable piezoresistive pressure transmitter. It adopts the piezoresistive pressure sensor with high stability and reliability and the special circuit of the transmitter with high performance for packaging.
Technical Parameter
| Model | GMP501-A |
| Medium | Gas/Liquid |
| Range | -0.1Mpa...0Mpa~0.01Mpa...100Mpa |
| Overload | 2 times full-scale pressure or 110MPa (minimum) |
| Precision | ±0.25% FS; ±0.5% FS |
| Pressure type | Gauge pressure, absolute pressure, sealed gauge pressure |
| Output signal | 4mA to 20mA DC (two-wire system); 1V to 5V DC (three-wire system) |
| Load Resistance | ≤ (U-11) / 0.02 (current type); ≥ 10 (voltage type) |
| Power supply | 11~28VDC |
| Insulation resistance | 500MΩ@500V DC |
| Shell material | SS304 |
| Sensor material | SS316 |
| Seal ring | Fluororubber |
| Cable | Φ7.5mm polyethylene special cable |
| Protection level | IP65 (plug-in type); IP67 (cable type) |
| Media suitability | Various media that are non-corrosive to 316 stainless steel and fluororubber |
| Compensation temperature | 0°C～+50°C |
| Operating temperature | -30°C～+70°C; -30°C～+125°C (can be customized) |
| Storage temperature | -30°C～+70°C |
| Temperature Coefficient | Zero temperature coefficient: 0.03% FS / ° C (≤ 100kPa); 0.02% FS / ° C (> 100kPa) Full temperature coefficient: 0.03% FS / ° C (≤ 100kPa); 0.02% FS / ° C (> 100kPa) |
| Long-term stability | ±0.3%FS/year (maximum) |
Product features
1. Reliable performance, easy to install and use
2. With short circuit protection and reverse polarity protection
3. Field adjustable can be equipped with a display header
4. Gauge pressure, absolute pressure, and seal reference pressure can be measured
5. Comply with EMC standards: EN61000-6-2:2005 and EN61000-6-4:2007 + A1:2011
Application
Diffused silicon pressure transmitters are widely used in petroleum, chemical, steel, electric power, light industry, environmental protection and other industrial fields. It has the characteristics of convenient installation, stable performance, reliable operation, etc. It is widely used in the environment of positive and negative pressure measurement. The temperature sensing element adopts imported diffused silicon or ceramic core component, and the sensor is composed of electronic amplifier, which will measure the signal. Converted to 0-10mA or 4-20mA output signal, diffused silicon pressure transmitter can be used with digital display pressure gauge, or can be used with automatic adjustment system or computer system.
Dimensions
