Product Overview

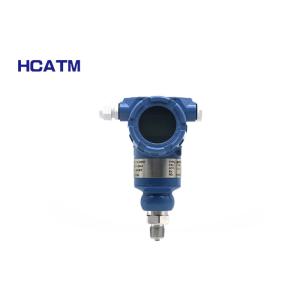

GMP500-DP differential pressure/high static pressure differential pressure transmitter is a pressure signal measured with the pressure side as the reference end,and has two ports and process piping connections.
Working principle of the metal capacitive differential pressure/high static pressure differential pressure transmitter is that when the pressure is indirectly applied to the surface of the metal measuring diaphragm (elastic measuring element) of different thickness through the isolating diaphragm and the guiding medium, the diaphragm is generated. Tiny deformation, the maximum shape variable does not exceed 0.1mm, the high-precision measurement circuit converts this tiny deformation into a voltage signal linearly related to the differential pressure signal. After linearization and temperature compensation, the voltage signal is later used by a dedicated chip. Convert to industry standard 4-20mA current signal or 1-5V voltage signal. The high-sensitivity integrated circuit used in the high sensitivity and measurement diaphragm detection circuit of the metal capacitive pressure sensor contains linear and temperature compensation circuits, so the entire transmitter can achieve high precision and high stability.
Product Features
1. High precision capacitive pressure transmitter with a maximum accuracy of 0.075%FS；
2. Widely used in the measurement of differential pressure, gauge pressure and absolute pressure in industrial sites, suitable for a variety of complex conditions;
3. Diaphragms of various materials can be customized, such as 316L, Monel, Hastelloy, gold plating, etc；
Technical Parameter
| Medium | Liquid, gas, steam | ||||||||
| Range | 0MPa...0.1MPa～41MPa | ||||||||
| Precision | ±0.1%; ±0.075% | ||||||||
| Pressure type | Differential pressure | ||||||||
| Output | 4~20mA DC; HART; Modbus | ||||||||
| Power supply | 12 to 45 VDC | ||||||||
| Structural materials | Flange joint: 316L, Hastelloy C, Monel Exhaust /drain valve: 316L, Hastelloy C, Monel Isolation diaphragm: 316L, Hastelloy C, Monel, | ||||||||
| Housing material | Low copper aluminum alloy polyurethane coating; stainless steel | ||||||||
| Explosion-proof grade | Flameproof ExdIIBT5Gb; intrinsic safety type ExiaIICT4/T5/T6Ga | ||||||||
| Operating temperature | -40°C～85°C | ||||||||
| Relative humidity | 0 to 95% RH | ||||||||
| Ambient temperature | -40°C～85°C | ||||||||
| Filling liquid | Silicone oil | ||||||||
| Display | LCD | ||||||||
| Conduit | M20x1.5; 1/2NPT-14 | ||||||||
| Pressing method | 1/4NPT-18 internal thread; 1/2NPT-14 internal thread; M20x1.5 external thread | ||||||||
| Relative humidity | 5%~95% RH | ||||||||
| Stability | ±0.2%/year | ||||||||
| Start Time | 3 seconds without preheating | ||||||||
| Volume change | <0.16m3 | ||||||||
| Remarks | Installation methods, body materials, output signals, accuracy requirements, temperature ranges ,and other parameters can be customized according to different customer needs. | ||||||||
