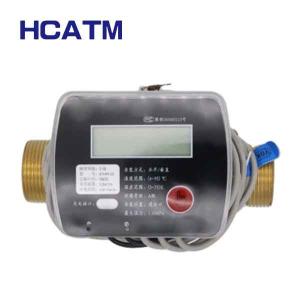

HC-03 Ultrasonic Heat Meter
The instrument used to measure and display the heat released or absorbed by the water flow through the heat exchange system is composed of flow sensor, matching temperature sensor, calculator (integrator) and other components.
The working principle is that when the water flows through the heat exchange system, the calculator receives the ultrasonic time difference to measure the water flow signal, and integrates the heat energy conversion value in a period of time combining with the temperature measurement difference of the water inlet and return pipes And displayed on the display and stored for query.
Product parameter
| Model Number | DN20/DN25/DN32/DN40 |
| Type | Ultrasonic heat meter |
| Keywords | Smart Ultrasonic Heat Meter |
| Nominal diameter | DN20~DN40 |
| Temperature range | 4°C~95°C |
| Temperature difference | 3°C~75°C |
| Max pressure | 1.6 MPa |
| Power supply | Lithium Battery |
| Communication | M-BUS |
| Battery Life | >= six years(Lithium battery) |
| Connection | Screw Thread |
Accurate Measurement And Quality
High quality transducer and advanced electronic measurement technology are used to ensure high accuracy and stability of flow measurement.There is no mechanical movement, no wear, the measurement accuracy is not affected by the service cycle, the maintenance cost is low, and the pressure loss is small.
| Nominal diameter(mm) | Maximum flow(m³/h) | Maximum flow(m³/h) | Minimum flow(m³/h) |
| 20 | 5 | 2.5 | 0.05 |
| 25 | 7 | 3.5 | 0.07 |
| 32 | 12 | 6 | 0.12 |
| 40 | 20 | 10 | 0.2 |
